12.23 Some fundamental algorithms on sequences

1.pdf

Algorithms on sequences (arrays)

  • Sequence shuffling
  • Sequence sorting
  • Sequence searching
  • Sequence merging

Algorithms and Pseudo-Code

  • It is a finite sequence of rigorous well-defined instructions, whose aim is to solve a specific problem.

  • Algorithms describe computations.

  • They can be implemented as programs in a programming language.

  • They can also be abstractly described using pseudo-code.

    • Pseudo-code is an informal notation to abstractly describe programs.
    • Strong syntactic rules of programming languages are omitted.
    • Types, operators, and control structures are used in a flexible way.
    • Subtasks can be referred to as functions/procedures (straightforward tasks, or complex tasks to be further refined/implemented later on).

Pseudo-Code Example

isPrime(int x) -> boolean {
  assume x is positive
  if x is 1, then return false
  else {
    for each i in [2, 3, ..., (x-1)] do {
      if i divides x then return false
    }
  }
  return true
}

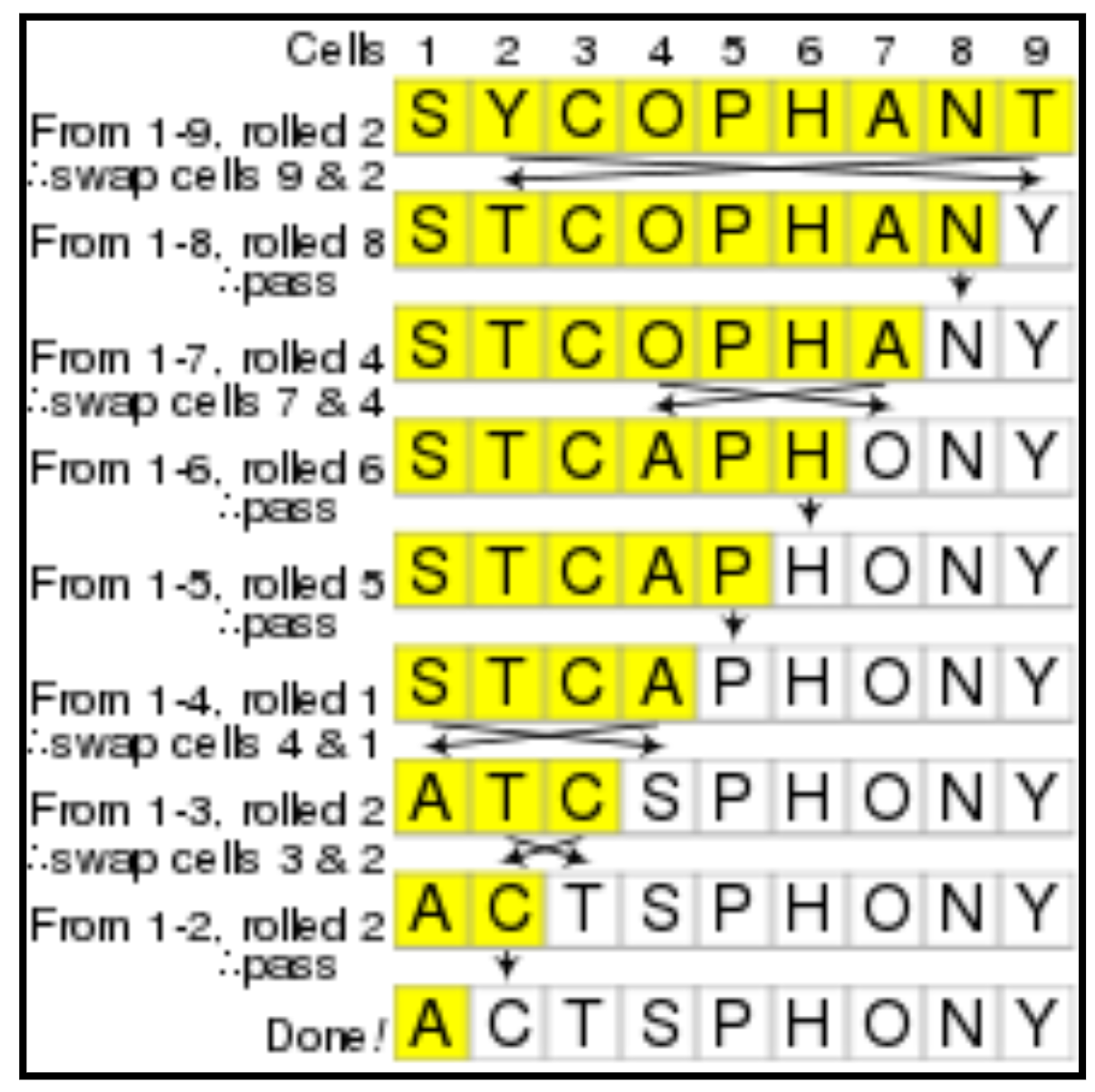

Shuffling a Sequence: The Fisher-Yates Algorithm

Problem: Randomly shuffle the elements of a sequence.

  • Input: A sequence s = [e1, ..., en]​ of elements.
  • Output: A random permutation of s​.

Fisher-Yates Algorithm:

  • Produces an unbiased random permutation (every possible output permutation is equally likely).
  • Shuffles sequence elements "in place" (without the need for additional space).

Shuffling a Sequence: The Fisher-Yates Algorithm

Pseudo-Code:

shuffle(seq s) {
  for i from length(s)-1 to 1 do {
    choose random j in [0..i]
    swap s[i] and s[j]
  }
}

image​

C Implementation:

void shuffle(int array[], int size) {
    srand(time(NULL));
    for (int i = 0; i < size; i++) {
        int j = (rand() % ((size - 1) - i + 1)) + i;
        int aux = array[i];
        array[i] = array[j];
        array[j] = aux;
    }
}

Myself version:

#include <stdio.h>
#include <stdlib.h>
#include <time.h>

int read(int seq[]) {
    int i = 0;
    while(scanf("%d", &seq[i])) {
        i++;
    }
    return i;
}

void shuff(int seq[], int size) {
    srand(time(NULL));
    for(int i = 0; i < size; i++) {
        int j = rand() % (size - i) + i;
        int temp = seq[i];
        seq[i] = seq[j];
        seq[j] = temp;
    }
}

void print(int seq[], int size) {
    for(int i = 0; i < size; i++) {
        printf("%d", seq[i]);
    }
}

int main() {
    int seq[128];
    int size = read(seq);
    shuff(seq, size);
    print(seq, size);
    return 0;
}

Sorting a Sequence: An Important CS Problem

  • Problem: Sorting a sequence of elements.
  • Input: A sequence s = [e1, ..., en]​ of sortable elements, i.e., elements for which there exists a defined order.
  • Output: A permutation of s​ that is increasingly sorted.

  • There exist many alternative algorithms to solve this problem, with different characteristics:

  • Efficiency

  • Memory requirements
  • Performance on particular data structures
  • Performance on partially sorted sequences, etc.

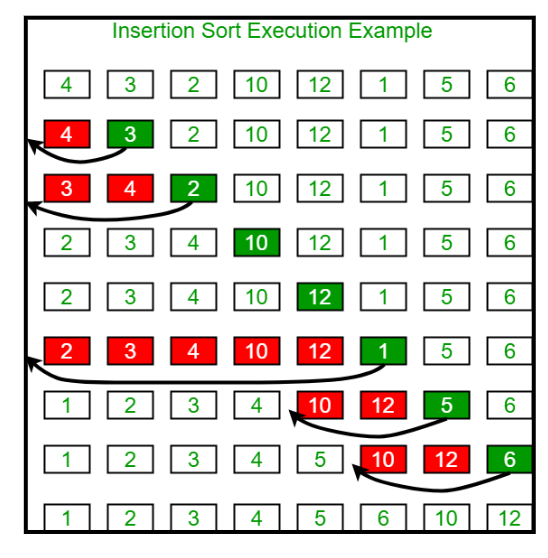

Sorting a Sequence with Insertion Sort

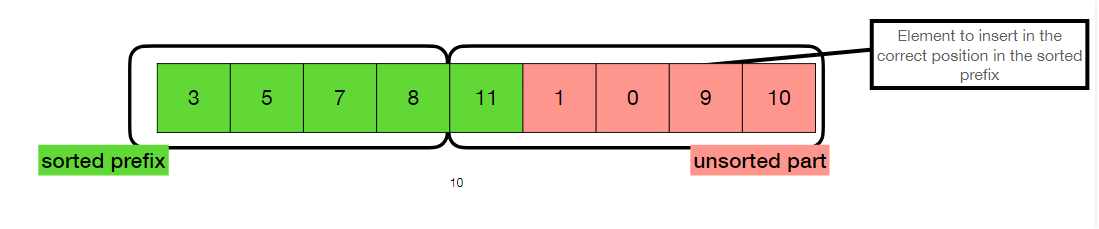

  • Key Idea:

  • Maintain a sorted prefix of the sequence.

  • At each step, insert the first element of the unsorted part into its sorted position of the sorted prefix, thus extending the sorted prefix by one.
  • When the unsorted part becomes empty, the sequence is sorted.

image​

Sorting a Sequence with Insertion Sort

Pseudo-Code:

‍

insertionSort(seq s) {
  for each i in [1..length(s)-1] do {
    j = i
    while (j > 0 and s[j-1] > s[j]) {
      swap s[j] and s[j-1]
      j = j - 1
    }
  }
}

image​

C Implementation:

void insertionSort(int array[], int size) {
    for (int i = 1; i < size; i++) {
        int j = i;
        while (j > 0 && array[j - 1] > array[j]) {
            int aux = array[j];
            array[j] = array[j - 1];
            array[j - 1] = aux;
            j--;
        }
    }
}

Sorting a Sequence with Selection Sort

Key Idea:

  • Maintain a sorted prefix of the sequence, with all elements smaller than the unsorted part.
  • At each step, select the minimum of the unsorted part, and exchange it with the first element in the unsorted part, thus extending the sorted prefix by one.
  • When the unsorted part becomes empty, the sequence is sorted.

image​

Pseudo-Code:

selectionSort(seq s) {
  for each i in [0..length(s)-2] do {
    min_index = i
    for j from i+1 to length(s)-1 do {
      if s[j] < s[min_index] then {
        min_index = j
      }
    }
    swap s[i] and s[min_index]
  }
}

image​

Sorting a Sequence with Selection Sort

C Implementation:

void selectionSort(int array[], int size) {
    for (int i = 0; i < size - 1; i++) {
        int min_index = i;
        for (int j = i + 1; j < size; j++) {
            if (array[j] < array[min_index]) {
                min_index = j;
            }
        }
        int aux = array[i];
        array[i] = array[min_index];
        array[min_index] = aux;
    }
}

Searching in a Sequence

  • Problem: Given a sequence s​ and an element e​, check if e​ belongs to s​.
  • Input: A sequence s = [e1, ..., en]​ of elements and an element x​.

  • Output:

  • If x​ belongs to s​, the index i​ such that ei​ is x​.

  • ​-1​ if x​ does not belong to s​.

Searching in a Sequence: Linear Search

Pseudo-Code:

linearSearch(seq s, elem x) -> int {
  x_index = -1
  i = 0
  while x_index == -1 and i < length(s) {
    if s[i] == x then x_index = i
    i = i + 1
  }
  return x_index
}

Searching in a Sorted Sequence

  • Problem: Given a sorted sequence s​ and an element e​, check if e​ belongs to s​.
  • Input: A sorted sequence s = [e1, ..., en]​ of elements and an element x​.

  • Output:

  • If x​ belongs to s​, the index i​ such that ei​ is x​.

  • ​-1​ if x​ does not belong to s​.

  • Observation:

  • Linear search still works!

  • But can we exploit the fact that s​ is sorted to speed up the search?

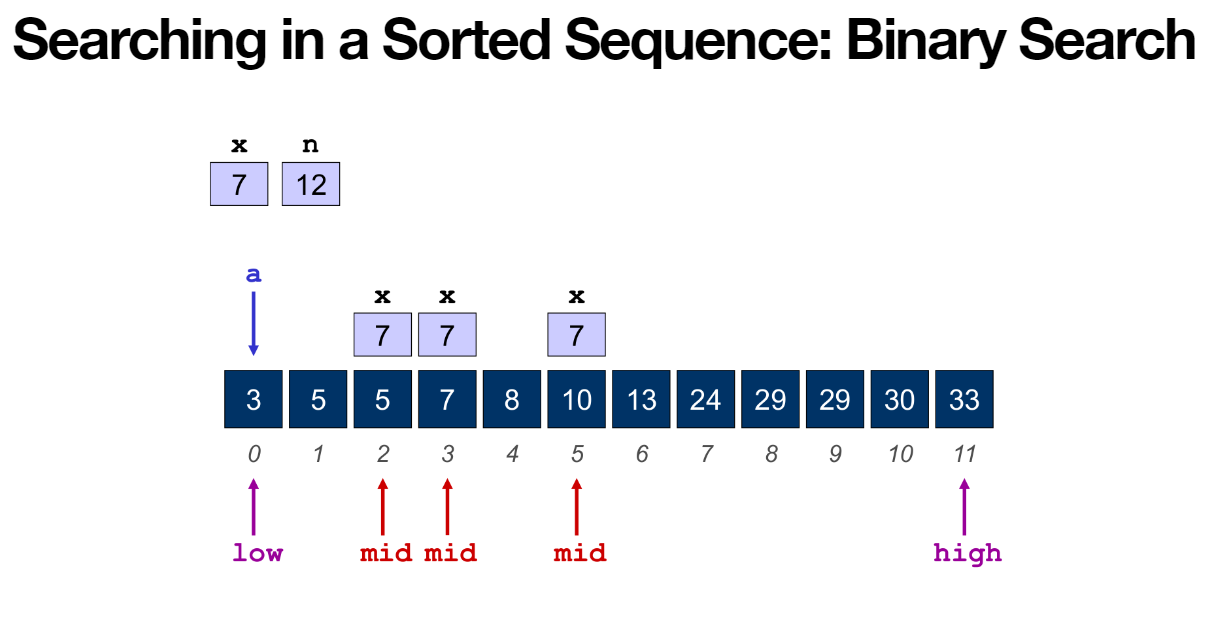

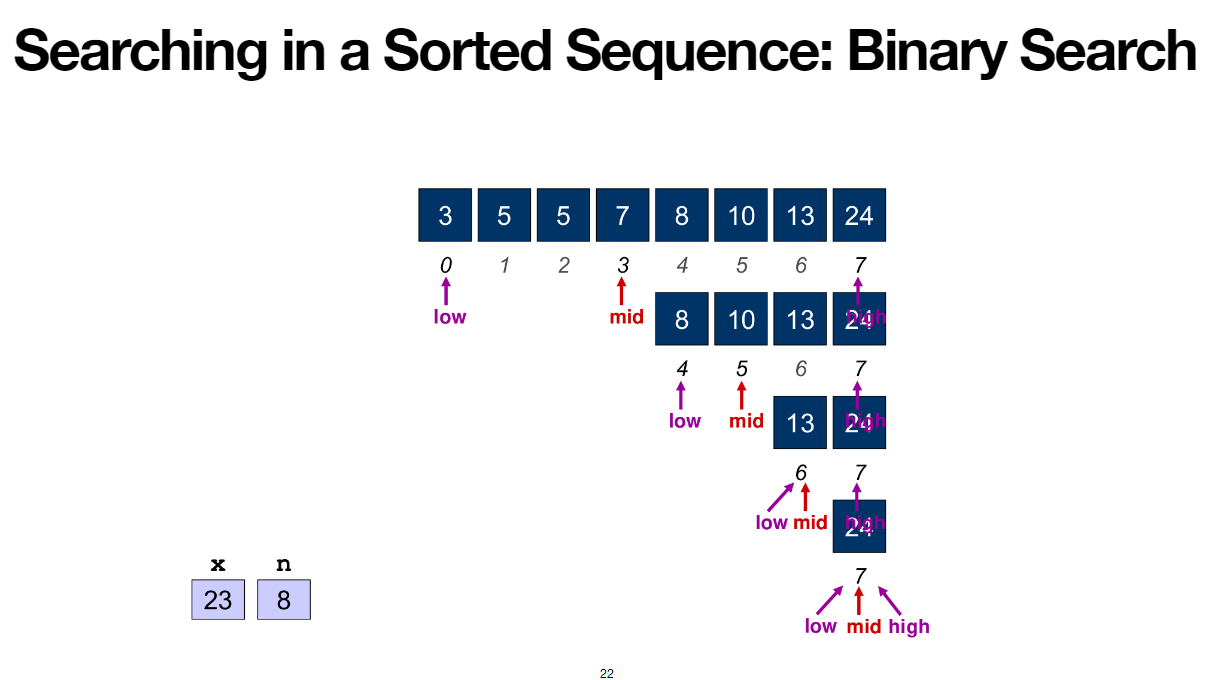

Searching in a Sorted Sequence: Binary Search

Key Idea:

  • Look up the mid-point of the sequence s​.

  • If the element in the mid-point of s​ is x​, return the mid-point.

  • If the element is smaller than the mid-point of s​, continue searching in the first half.
  • If the element is greater than the mid-point of s​, continue searching in the second half.
  • Repeat the process until the element is found, or the subsequence to explore is empty.

Pseudo-Code:

binarySearch(seq s, elem x) -> int {
  low = 0
  high = length(s) - 1
  while low <= high {
    mid = (high - low) / 2
    if s[mid] == x then return mid
    else {
      if s[mid] < x then low = mid + 1
      else high = mid - 1
    }
  }
  return -1
}



Merging Sorted Sequences

  • Problem: Given two sorted sequences s1​ and s2​, create a sorted sequence s3​ that merges s1​ and s2​.
  • Input: Sorted sequences s1​ and s2​.
  • Output: A sorted sequence s3​ that is the permutation of the concatenation s1 + s2​.

Merging Sorted Sequences

  • Naïve algorithm:

  • Copy both s1​ and s2​ into s3​ in a contiguous way (i.e., s3​ is the concatenation of s1​ and s2​).

  • Sort s3​.

  • Key question:

  • Can we take advantage of the fact that s1​ and s2​ are already sorted to make the process more efficient?

Merging Sorted Sequences: Linear Merge

Key Idea:

  • Maintain in s3​ a sorted merge of two prefixes of s1​ and s2​.
  • ​s1​ and s2​ have corresponding "non-treated" parts.

  • At each step:

  • Compare the first elements of the non-treated parts of s1​ and s2​.

  • Extend s3​ with the smaller of the two, and reduce the untreated part of the sequence contributing the element to s3​.

Pseudo-Code:

merge(seq s1, seq s2) -> seq {
  output = []
  i = 0
  j = 0

  while i < length(s1) and j < length(s2) {
    if s1[i] <= s2[j] then {
      output = output + s1[i]
      i = i + 1
    } else {
      output = output + s2[j]
      j = j + 1
    }
  }

  while i < length(s1) {
    output = output + s1[i]
    i = i + 1
  }

  while j < length(s2) {
    output = output + s2[j]
    j = j + 1
  }

  return output
}

‍
