11.11 Statement, assignment operators, linear accumulation

intro-to-computer-science-gtiit-05-2024.pdf

Review

Increment and decrement operators

int a, b = 0, c = 0;
a = ++b + ++c;
printf("%d %d %d\n", a, b, c);
a = b++ + c++;
printf("%d %d %d\n", a, b, c);
a = ++b + c++;
printf("%d %d %d\n", a, b, c);
a = b-- + --c;
printf("%d %d %d\n", a, b, c);

Today's topics

Assignment operators
Definite iteration ("for" loops)
Computing sums and products of sequences
The return statement in main()
The comma operator

Assignment operators

In addition to =, there are other assignment operators, such as += and -=.
An expression such as: k = k + 2;

adds 2 to the (old) value of k, and assigns the result to k. Also, the expression as a whole will have that value (the value of the right-hand side expression). * The expression: k += 2;

accomplishes the same task!

The different assignment operators have the following form: variable op= expression

where op is an operator. This is equivalent to variable = variable op (expression)

Assignment operators
`=` `+=` `-=` `*=` `/=` `%=` `>>=` `<<=` `&=` `^=` `\\|=`

For example

x = 5(0 0 0 0 0 1 0 1) if x <<= 1 (0 0 0 0 1 0 1 0) becomes x = 10

Move the digits and filled the blank with 0

p ^= qis xor \(\equiv p\neq q\)

1. `&=` (Bitwise AND assignment)

The &= operator performs a bitwise AND between two numbers and assigns the result to the left-hand variable.

int x = 6;   // In binary: 0000 0110
int y = 3;   // In binary: 0000 0011
x &= y;      // x = x & y; -> 0000 0010 (binary for 2)
printf("%d\n", x);  // Output: 2

Explanation:

0000 0110 (6) AND 0000 0011 (3) results in 0000 0010 (2).

2. `^=` (Bitwise XOR assignment)

The ^= operator performs a bitwise XOR between two numbers and assigns the result to the left-hand variable.

int x = 6;   // In binary: 0000 0110
int y = 3;   // In binary: 0000 0011
x ^= y;      // x = x ^ y; -> 0000 0101 (binary for 5)
printf("%d\n", x);  // Output: 5

Explanation:

0000 0110 (6) XOR 0000 0011 (3) results in 0000 0101 (5).

3. `|=` (Bitwise OR assignment)

The |= operator performs a bitwise OR between two numbers and assigns the result to the left-hand variable.

int x = 6;   // In binary: 0000 0110
int y = 3;   // In binary: 0000 0011
x |= y;      // x = x | y; -> 0000 0111 (binary for 7)
printf("%d\n", x);  // Output: 7

Explanation:

0000 0110 (6) OR 0000 0011 (3) results in 0000 0111 (7).

These operators are useful when manipulating individual bits in numbers.

Assignment operators - An Example

#include <stdio.h>

/* Computes the factorial of a natural number n.
 * The factorial of n is the result of the product (1 * 2 * ... * n).
 * The argument is received from standard input.
 * The result is printed out on standard output.
 *
 * Author: John Doe
 * Date: April 18th 2023
 * Version: 0.1
 */
int main() {
    int n;
    scanf("%d", &n);

    int factorial = 1;
    int i = 1;
    while (i <= n) {
        factorial *= i;
        i++;
    }
    printf("%d\n", factorial);

    return 0;
}

The For Statement

It provides an additional mechanism to define iteration.
It can be reduced to "while" loops (while loops are more expressive).
For loops correspond to a form of iteration known as "definite iteration" .
In definite iteration, the number of times that the loop body is executed is determined.
Very useful for certain iteration patterns, e.g., sequence summations and products.

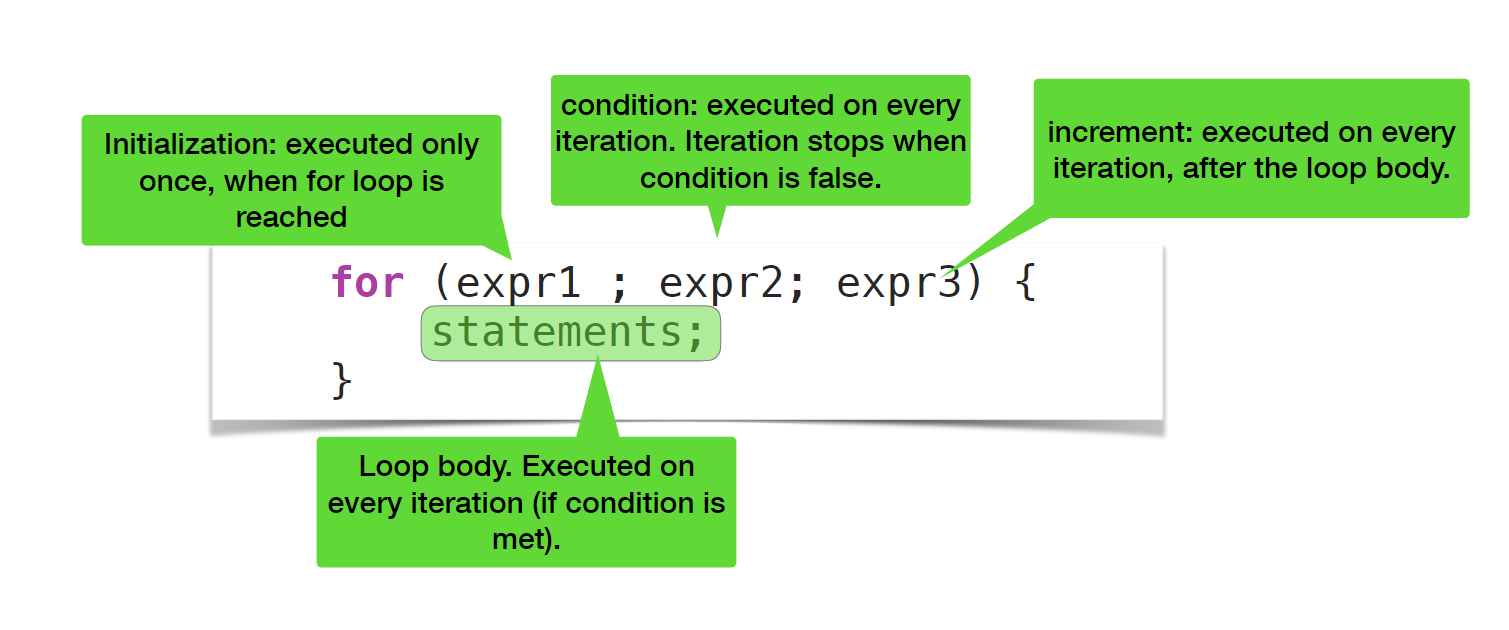

In C, it has the following syntax:

for (expr1; expr2; expr3) {
    statements;
}

For Loops vs While Loops

For loops can also be written as while loops (while loops are more expressive):

for (expr1; expr2; expr3) {
statements;
}

is equivalent to

  expr1;
  while (expr2) {
      statements;
      expr3;
  }

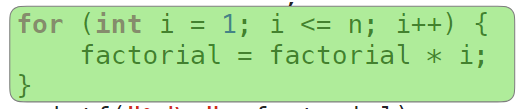

For Loop to While Loop Reduction

int factorial = 1;
for (int i = 1; i <= n; i++) {
    factorial = factorial * i;
}

int factorial = 1;
int i = 1;
while (i <= n) {
    factorial = factorial * i;
    i++;
}

When and How to use a For statement

The for loop is best used when the number of times the loop will iterate is determined and can be expressed in relation to iteration variables.
It can also favor readability, with initialization/condition/increment all defined at the top of the loop.
The iteration variable should not be modified in the loop body.
This maintains the good practice of “advancing” iteration at the end of the loop body.
Some really bad practices:
Modifying the iteration variables in the loop body.
Writing conditions with side effects.
Putting statements not related to the iteration in the initialization.

Manual Execution Example

int a = 0;
for (int i = 0; i < 2; i = i + 1) {
    a = a + 2;
}

Execution Table

Step	`a`	`i`	Condition (`i < 2`)
`int a = 0`	0	-	-
`int i = 0`	0	0	-
`i < 2`	0	0	true
`a = a + 2`	2	0	-
`i = i + 1`	2	1	-
`i < 2`	2	1	true
`a = a + 2`	4	1	-
`i = i + 1`	4	2	-
`i < 2`	4	2	false

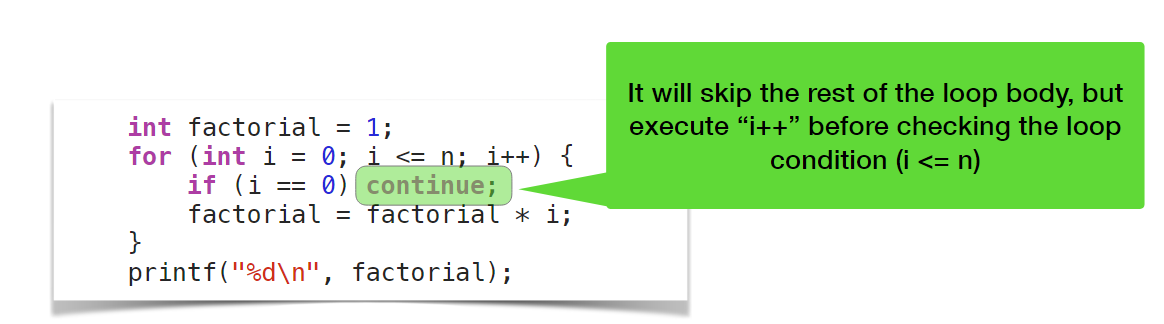

The `Continue` Statement in a For Loop

We have already discussed that the use of "loop breaking" statements such as continue and break should be avoided.
It is nevertheless useful to know how these work.
The continue statement in a while loop makes the execution "skip" the remainder of the loop body, i.e., it jumps directly to the loop condition.
In a for loop, it makes the execution jump to the increment of the loop. Then, the condition is evaluated.

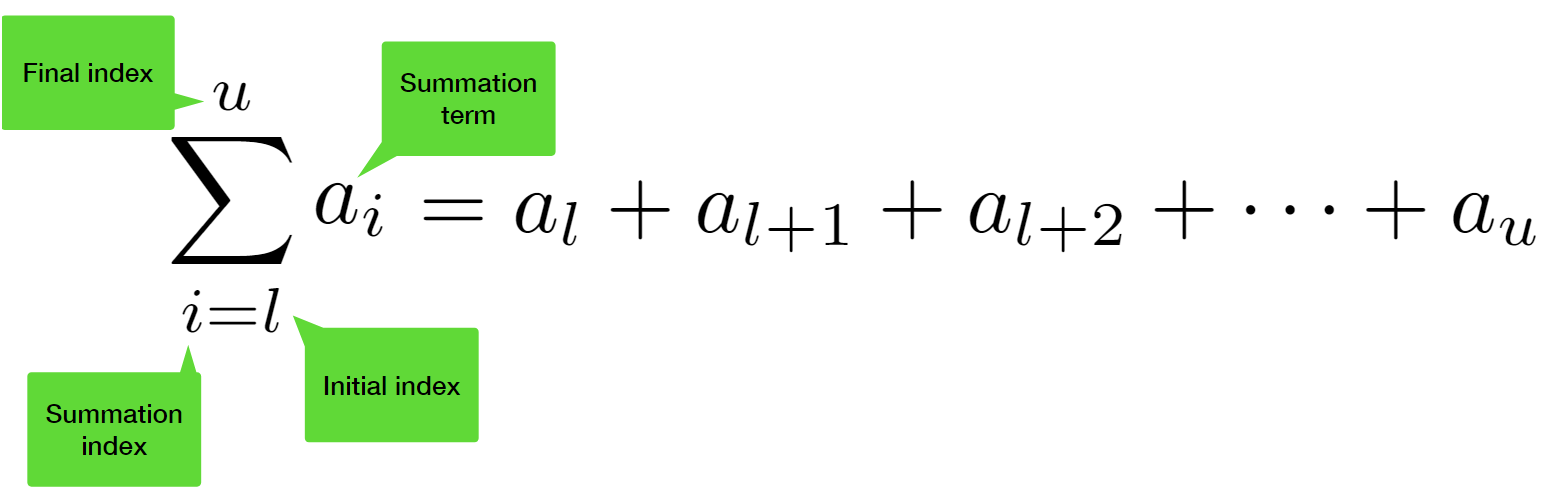

Sigma Notation (sequence summation)

A mathematical expression that represents the sum of terms of a sequence within a certain range.

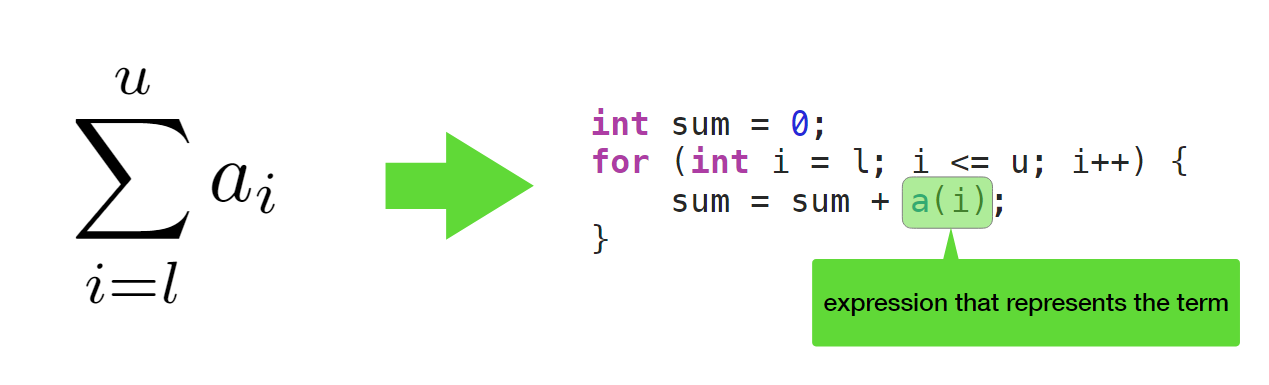

Summations and their implementation

Summations can be straightforwardly mapped into programs, using for loops.

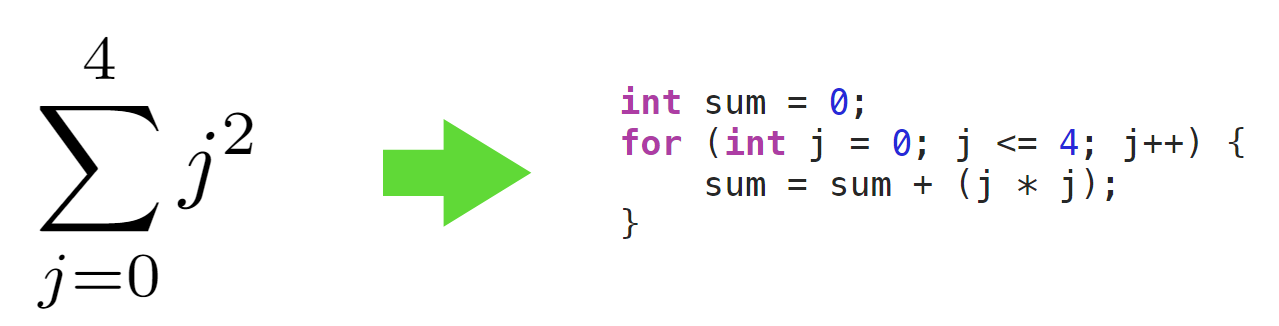

Example

The `return` statement

The return statement is used to communicate return values between programs.
When modularizing programs in functions (we’ll see that later), return statements are used to communicate back the results of function computations.
In our simple programs, with just a main() routine, we often see a return 0 statement.
What happens if we put the return 0; statement elsewhere?
The program exits as soon as the return statement is reached.
What happens if we change the 0 integer constant by another one, like 1?
As a convention, return 0 is used to indicate that the program has successfully achieved its goal (returning a non-zero value will indicate that there has been a problem in the computation).

The Comma Operator

The comma operator is a binary operator with expressions as operands.
In a comma expression of the form expr1, expr2
expr1 is evaluated first, and then expr2.
The comma expression as a whole has the value and type of its right operand.

Example:

a = 0, b = 1

If b is an int, then this comma expression has value 1 and type int.

The comma operator sometimes gets used in for statements.
It allows multiple initializations and multiple processing of indices.

For example, the code:

for(sum=0, i=1; i <= n; ++i)
    sum += i;

can be used to compute the sum of integers from 1 to n.

The Comma Operator, a not-so-recommendable example

Carrying the idea further, we can stuff the entire loop body into the for parentheses:

for(sum=0, i=1; i <= n; sum +=i, ++i);

But not as:

for(sum=0, i=1; i <= n; ++i, sum +=i);

Because it would make ++i be evaluated first, and sum would have a different value.

These uses of comma should be avoided.

Readability and clarity are seriously affected when abusing comma statements.
