1.6 time complexity
intro-to-computer-science-gtiit-12-2024.pdf
Time complexity
- Consider an algorithm that takes as input an array of size n
-
We express running time of the algorithm as a function of n
-
short sequences are easier to sort than long ones
- Generally, we seek upper bounds on the running time
-
Worst-case:
-
T(n) = maximum time of the algorithm on any input of size n
-
Average-case (not to be covered in this course):
-
T(n) = expected time of algorithm over all inputs of size n
Machine-independent time
What is selectionSort()’s worst-case time, in seconds?
- It depends on the characteristics of our computer
Idea:
- Ignore machine-dependent constants.
- Do not talk about "how many seconds", talk about "how many steps" or "how many operations".
- Look at the growth of T(n) as n → ∞.
This is asymptotic analysis.
Worst Case Asymptotic Analysis
For the algorithm to be analyzed,
- Determine what is the “size” of the input
- Determine which are the relevant operations/steps
- Analyze the worst case configuration among all possible concrete inputs of arbitrary size n (worst case is that which would exercise more times the relevant operations)
- Express the number of relevant operations in the worst case, as a function T on the input size n
- Determine the asymptotic growth of T
Worst Case Asymptotic Analysis
void selectionSort(int array[], int size) {
for (int i = 0; i < size-1; i++) {
int min_index = i;
for (int j = i+1; j < size; j++) {
if (array[j] < array[min_index]) {
min_index = j;
}
}
int aux = array[i];
array[i] = array[min_index];
array[min_index] = aux;
j--;
}
}
\(T(n) = \sum_{i=1}^{n-1} \left( 6 \cdot \sum_{j=1}^{i} 1 \right)\)
\(T(n) = \sum_{i=1}^{n-1} (6 \cdot i)\)
\(T(n) = 3 \cdot (n^2 - n)\)
\(T(n) \in \Theta(n^2)\)
Worst Case Asymptotic Analysis
void selectionSort(int array[], int size) {
for (int i = 0; i < size-1; i++) {
int min_index = i;
for (int j = i+1; j < size; j++) {
if (array[j] < array[min_index]) {
min_index = j;
}
}
int aux = array[i];
array[i] = array[min_index];
array[min_index] = aux;
}
}
Θ-notation (Big Theta)
\(\Theta(g(n)) = { f(n) : \text{there exist positive constants } c_1, c_2, n_0 \text{ such that }0 \leq c_1 \cdot g(n) \leq f(n) \leq c_2 \cdot g(n) \text{ for all } n \geq n_0 }\)
"f is bounded both above and below by g asymptotically"
In Practice:
- Drop low-order terms; ignore leading constants.
- Example: \(3n^3+90n^2-5n+6046=\Theta(n^3)\)

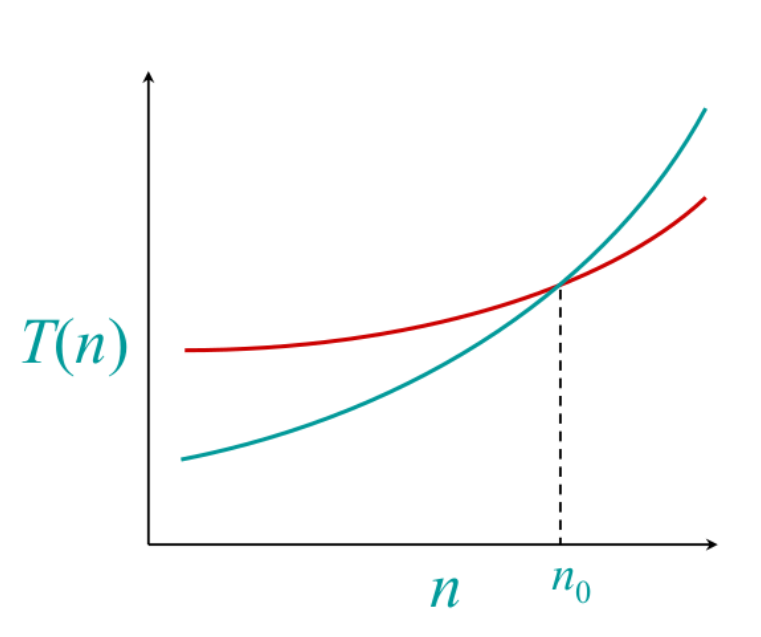

Asymptotic Performance
When \(n\) gets large enough, a \(\Theta(n^2)\) algorithm is always better than a \(\Theta(n^3)\) algorithm.
-
Asymptotic analysis is a useful tool:
-
Helps us compare the efficiency of alternative algorithms for a given problem.
- Allows us to estimate the worst-case running time of algorithms for larger inputs based on the actual running times of smaller inputs.
Difference between big-theta Θ and big-oh O
- We are usually interested in searching for tight bounds.
-
Θ-notation refers to a tight bound:
-
\(3n^3 + 90n^2 - 5n + 6046\) belongs to \(\Theta(n^3)\)
-
There is another notation, O-notation, which refers to an upper bound:
-
\(3n^3 + 90n^2 - 5n + 6046\) belongs to \(O(n^{10})\) // true but not very informative
- \(3n^3 + 90n^2 - 5n + 6046\) belongs to \(O(n^5)\) // better but not ideal
- \(3n^3 + 90n^2 - 5n + 6046\) belongs to \(O(n^3)\) // the tightest possible
Big-theta Θ vs. big-oh O, worst-case vs. all cases
- We often use O-notation to describe the running time of an algorithm by a more immediate upper bound.
- For example, the doubly nested loop structure of
selectionSort() immediately yields an \(O(n^2)\) upper bound on the worst-case running time. - The O-notation describes an upper bound, so when we use it to bound the worst-case running time of an algorithm, we have a bound on the running time of the algorithm on every input.
- Thus, the \(O(n^2)\) bound on the worst-case running time of
selectionSort() also applies to its running time on every input. - However, a \(\Theta(n^2)\) bound on the worst-case running time does not imply a \(\Theta(n^2)\) bound on the running time on every input.
- For instance,
insertionSort() has a \(\Theta(n^2)\) bound for the worst-case, but if the array is already sorted, it runs in linear time.
Complexity Naming
- \(O(1)\): constant time
- \(O(\log n)\): logarithmic time
- \(O(n)\): linear time
- \(O(n^2)\): quadratic time
- \(O(n^3)\): cubic time
- \(O(2^n)\): exponential time
Accidentally quadratic code
void toLower(char s[]) {
for (int i = 0; i < strlen(s); i++) {
if (s[i] >= 'A' && s[i] <= 'Z') {
s[i] += 'a' - 'A';
}
}
}
int strlen(const char s[]) {
int len = 0;
while (s[len] != '\0') {
len++;
}
return len;
}
- Loop condition does a call to
strlen(), which is O(n) time. - In O(n) time:
void toLower(char s[]) {
int n = strlen(s);
for (int i = 0; i < n; i++) {
if (s[i] >= 'A' && s[i] <= 'Z') {
s[i] += 'a' - 'A';
}
}
}
Algorithms review with time complexity
- Summing elements of a sequence: \(O(n)\)
- Fisher-Yates Shuffle: \(O(n)\)
- Insertion Sort: \(O(n^2)\)
- Selection Sort: \(O(n^2)\)
- Merge: \(O(n + m)\) (n and m are the lengths of the sequences to merge)
- Linear search in a sequence: \(O(n)\)
- Binary search in sorted array: \(O(\log n)\)
Quadratic hasDuplicate()
Design a program hasDuplicate(int a[], int n), that runs in \(O(n^2)\) time and returns true if the array contains a duplicated value (two or more times), false otherwise.
For instance, {1,2,3,4,5,6} has no duplicate, {1,2,3,4,5,2} has duplicate.
Cubic hasTriplicate()
Design a program hasTriplicate(int a[], int n), that runs in \(O(n^3)\) time and returns true if the array contains a value that appears thrice (or more times), 0 otherwise.
For instance:
- {1,2,3,4,5,6} has no triplicate
- {1,2,3,4,5,2} has no triplicate
- {1,2,3,2,5,2} has a triplicate

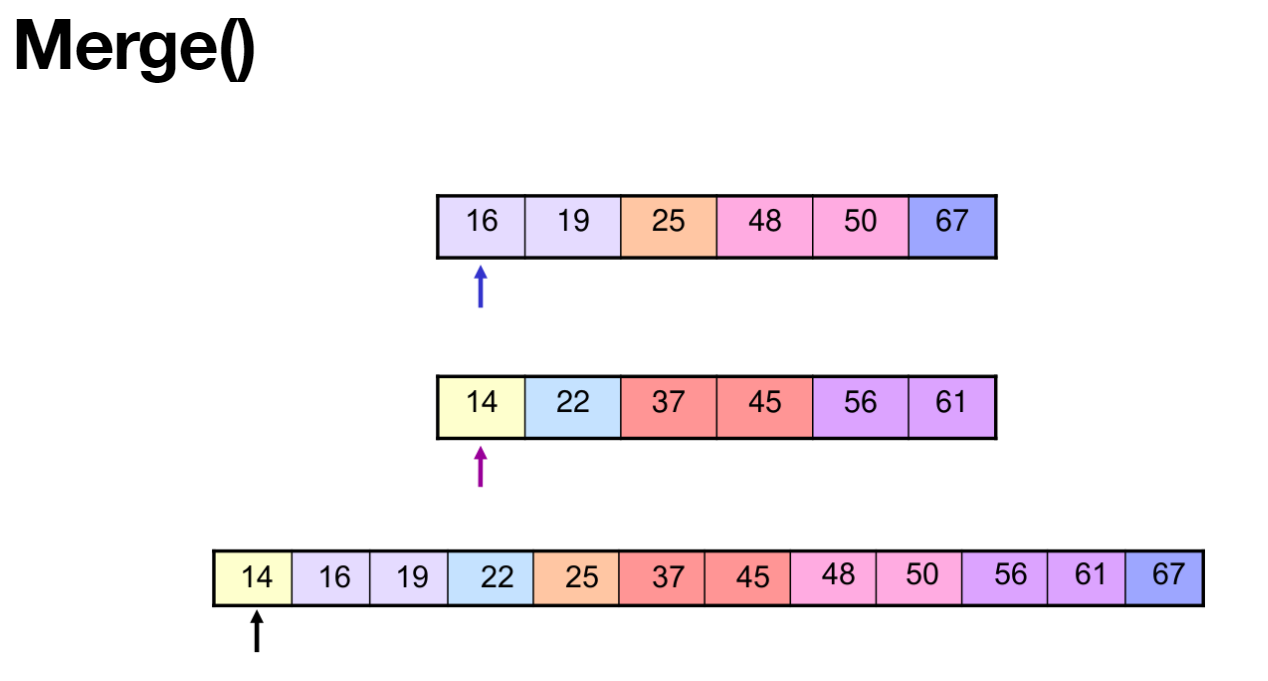

Using merge() to create a Sorting Algorithm
Idea of merge sort:
- Have array
a[] as input. -
Merge pairs of elements in the array:
-
a[0] a[1] => get a[0..1] sorted -
a[2] a[3] => get a[2..3] sorted - ...
-
Then merge groups of 4:
-
a[0..1] a[2..3] => get a[0..3] sorted - ...
-
Then groups of 8...
-
...
- Then groups of \(n/2\) =>
a[] sorted.

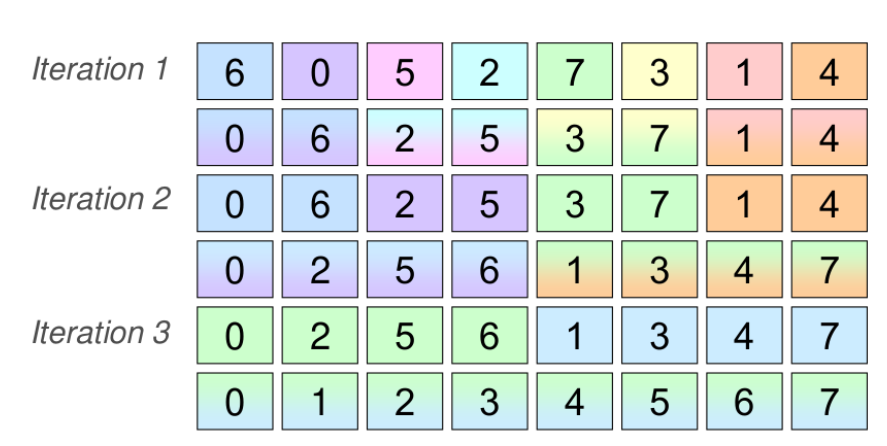

Iteratins:
- Iteration 1: Merge pairs of elements.
- Iteration 2: Merge groups of 4.
- Iteration 3: Merge groups of 8, and so on until sorted.
mergeSort()
void mergeSort(int array[], int n) {
for (int curr_size = 1; curr_size < n; curr_size = 2 * curr_size) {
for (int left_start = 0; left_start < n-1; left_start += 2*curr_size) {
int mid = min(left_start + curr_size - 1, n-1);
int right_end = min(left_start + 2*curr_size - 1, n-1);
merge(arr, left_start, mid, right_end);
}
}
}
Time Complexity of mergeSort()
-
For each value of
curr_size (outer for loop): -
Sum of all
merge() calls on subarrays whose total size is n: O(n). - Outer loop repeats log n times.
- Total time: O(n log n).
Recursive mergeSort()
void mergeSort(int arr[], int left, int right) {
if (left < right) {
int mid = left + (right - left) / 2;
mergeSort(arr, left, mid);
mergeSort(arr, mid + 1, right);
merge(arr, left, mid, right);
}
}
Recursive mergeSort() (cont.)
void merge(int arr[], int left, int mid, int right) {
int i, j, k;
int n1 = mid - left + 1;
int n2 = right - mid;
int leftArr[n1], rightArr[n2];
for (i = 0; i < n1; i++)
leftArr[i] = arr[left + i];
for (j = 0; j < n2; j++)
rightArr[j] = arr[mid + 1 + j];
i = 0;
j = 0;
k = left;
while (i < n1 && j < n2) {
if (leftArr[i] <= rightArr[j]) {
arr[k] = leftArr[i];
i++;
} else {
arr[k] = rightArr[j];
j++;
}
k++;
}
while (i < n1) {
arr[k] = leftArr[i];
i++;
k++;
}
while (j < n2) {
arr[k] = rightArr[j];
j++;
k++;
}
}
Final Remarks
- \(O(n \log n)\) is the optimal time complexity for sorting sequences of size \(n\).
- Merge sort is not the only sorting algorithm with that running time.
- Asymptotic analysis is a first approach to solving problems efficiently.
- Later on, you will see many low-level factors that also impact efficiency.
- Time complexity is an important topic to be aware of when programming.
- Be careful with accidentally creating \(O(n^2)\) code that could be \(O(n)\), or \(k \cdot T(n)\) code that could be \(T(n)\).
